Tuesday, December 14, 2010

TIGER grant set to improve bus service in and around our nation's capital - USDOT Blog

I am at another IntelliDrive Workshop and helping define research topics that will define how vehicles communicate to the infrastructure and the applications that will be developed. There are several discussion items swirling around the future of the vehicle fleet and how transportation engineers will handle the new data. Our interest as a government agency is improving safety of travellers using information from vehicles.

One of the challenges of research is to get adoption of the new concept. There are so many good ideas that have been studied, but remain unimplemented because of technology transfer.

I believe that projects should have elements of research in them and this blog posting by USDOT made me think about how IntelliDrive could be rolled out. If the federal government tied funding to specific technology enhancements like this one (TIGER grant set to improve bus service in and around our nation's capital - Welcome to the FastLane: The Official Blog of the U.S. Secretary of Transportation) and built in research as a part of the grant, the agency might serve itself well by implementing best practice and eliminating the need for Tech Transfer to their specific agency. There would be a research component tied to the project and the funding for research would be less difficult to find. A downside is it could increase the time needed before implementation because research isn't always on a fast track.


Friday, December 3, 2010

NYC BIke Signal on 1st Ave

On the bicycle tour fo 1st Avenue, I came across intersections like this where the left turn is separated from the bicycle movement. In this case, both are red because the pedestrian (crossing movement) is active. In Portland, we have been exploring the use of a optically programmed bicycle signal, so that motorists can't see the bicycle signal is active.
Posted by Picasa

1st Avenue NYC

I was fortunate to visit New York City after a trip to DC for a FHWA Workshop. I met up with one of the bicycle planning staff that has implemented the 1st Avenue bicycle facility. The bicycle lanes were striped on the left hand side of the street to eliminate conflicts with buses. I was not initially enamored with the conflict of left turning traffic, but I found it more natural for a left turning vehicle to yield to the through bicycle traffic then the right turning traffic might otherwise. I could see a possible research problem statement forming for the National Cooperative Highway Research Program of the Transportation Research Board. One element that needs further study is the effectiveness of the green bike box with the person on a bicylce expected to make it across two or three lanes of through traffic. The conservative engineer makes me wonder if someone would weave over to the right hand side and have a conflict with traffic that has a green. Education of cyclists would be key to make this effective.
Signage is pretty good along the corridor since this is a rather new implementation. In this case, there was an exception for bikes at one of the mid block intersections that they closed down to reduce conflicts. In this case, they eliminated the access to vehicles, but left the path for cyclists and pedestrians to the local street. It encourages a little more mobility, actually reducing a conflict for motor vehicles (previously there was an occasional left turning vehicle).
The other treatment on this facility that was particularly innovative was the way they created green space within the median. In this case, they stripe the bicycle to yield to pedestrian and bicycle traffic within this median in order to allow an uncontrolled intersection. This is something we can use for the Portland to Milwaukie Light Rail line intersections as opposed to signals that might otherwise result in needless delays.
Posted by Picasa

Tuesday, November 30, 2010

DC Leading Pedestrian Interval


Very hard to make out in these pictures, but I stumbled upon a Leading Pedestrian Interval in DC at this intersection near Dupont Circle. it looks like the Walk is provided a 4 second advance based on my single cycle observation and delays the green from coming up in both directions to allow pedestrians to establish their presence in the intersection. DC uses a 100-second cycle length and this is a two-phase intersection, so it is an easy location to make this happen within the constraints of the intersection (which didn't seem that busy).



Posted by Picasa

DC Bike Share has evolved

I posted awhile back about DC's first efforts with Bike Sharing.
I don't recall where I stood on the issue exactly, but I don't think I was very positive because it seemed to be putting people that might not be very comfortable on a bike in difficult positions (riding in traffic without good information on routes, aka unfamiliar territory).  The bikes originally seemed a bit clunky and the system seemed to be bailing wire and duct tape.

I had a chance to check out version 2.0 this week and with the upgraded pay stations, the real-time communication to the sensors that tell you where bike stations are and how many of the spots are full, the system is fully functional and as convenient as you can make it, where stations are provided.

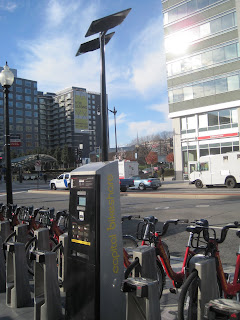

I encountered this station outside of the USDOT headquarters building which is adjacent to the Navy Yard station of Metro. The station had a lot of bikes, enough to make rental bike retail locations out of business for all but the all day trips (the costs of rental at Capital Bike Share is expensive for trips longer than 2 hours).

Riding the bike around, I found the 3-speeds adequate for DC's flat terrain. The bikes aren't light but they are very comfortable and have all of the chain guards and other features that you would experience on a European bike.

For the casual rider, it is a great system to get you from A to B. In fact, they don't charge if you use the bike less than 30 minutes. There is a $5 24-hour charge for membership and that increases to $25 for a month and $75 for an annual pass. Very reasonable considering that you can take a bike to a station every 30 minutes and not pay a cent for rental. You have to be willing to check in the bikes.

I am very interested in the cost per trip and the comparison with transit, although that suggests that you could take away transit, which isn't practical.

As far as urban design elements, this isn't the nicest looking station. The bollards are there for the USDOT building and I am guessing are not actually tied to the bikesharing (I haven't confirmed that).

So, what can I say... I have changed my tune on bike sharing and believe it is something that should be more seriously considered then I otherwise believed. I can admit that I am a believer, pending the cost data.



Posted by Picasa

Portland = Amsterdam?

I had to chuckle a bit when the article form Yes! Magazine mentioned Portland becoming a little like Amsterdam.
Having been there this past year, I would argue we're a long ways away from streets like this. Maybe on Sunday Parkways, we achieve this sort of environment, but that's only 5 days of the year.
Posted by Picasa

Cycle City, USA: Portland's Secrets for Becoming a World-Class Biking City

Cycle City, USA: Portland's Secrets for Becoming a World-Class Biking City

I had the pleasure of meeting with Jay when he was in Portland for the Bikes Belong Cycling Tour of Portland's facilities. We had a good time with him and the participants from Chicago, Houston, Seattle, elsewhere.

Thursday, November 25, 2010

FHWA IntelliDrive Mobility & Environment Working Group


Next week will take me back to the spiral of national transportation research. I am headingout on Sunday to attend the FHWA's IntelliDrive Mobility & Environment Workshop as a member of the Federal Transit Administration's IntelliDrive Steering Group. There are some great Day One applications coming out of the IntelliDrive program that can improve safety and efficienty for transit. When the Vehicle Infrastructure Integration program was initiated back in 2006, I was working a lot with transit agencies on signal priority and thought why not public agency vehicles for Day One installation as opposed to the challenges of working with the auto manufacturers. It seemed like a reach to get installation and privacy concerns addressed in the near-term five year roll out of that program. It may be less of an issue as technology evolves, but working with a transit agency investing in technology that might reduce government costs speaks to me as something with a payback.

I am combining the trip with a day visit to New York City to discuss their experience with bike signals, pedestrian innovation, and how they're using their traffic signals for sustainability. It's a huge spectrum of questions, but with what we're trying to achieve in Portland, it will be nice to find if there are peers that I can work with in the future.
Posted by Picasa

Tuesday, November 23, 2010

Janette Sadik-Khan NYC Article

"I don't hate cars," says the commissioner, "It's a matter of balance. Until a few years ago, our streets looked the same as they did fifty years ago. That's not good business, to not update something in fifty years! We're updating our streets to reflect the way people live now. And we're designing a city for people, not a city for vehicles." Read more: http://www.esquire.com/features/brightest-2010/janette-sadik-khan-1210#ixzz16Ag76An8

"She's preparing us for a future that will have fewer cars," says Schwartz. This is something that is tough to swallow for many. But Sadik-Khan is using her method to make biking look cooler. If it's such a pain in the ass to drive in the city, then owning a car won't be a luxury. It will be a Members Only jacket. So roads that had four lanes now have three, and three lanes are thinning to two.Read more: http://www.esquire.com/features/brightest-2010/janette-sadik-khan-1210#ixzz16AikqQ33

What she's doing in New York is trickling across the nation. Parklets are popping up in San Francisco. Portland, Oregon, the outdoor hipster capital of the country, was inspired by New York City, of all places, to have protected bike lanes — an idea Sadik-Khan lifted from Copenhagen, where the bike lanes are protected from traffic by a single-file line of parked cars.
Posted by Picasa

Sunday, November 14, 2010

Understanding a Bike Box, Training Cyclists

I was on a ride this morning and went through SE 39th & Clinton, where there is a bike box in the eastbound direction. The trouble we had was a female cyclist with a brand new bike was hanging out right behind a vehicle that was waiting at the signal. The driver was sitting in the lane after the green and they were very concerned about moving with the cyclist there, they were trying to avoid a right hook crash.

When I rolled up, I said "I think they are waiting for you" and she seemed to nod in agreement.... but wasn't quite ready to go ahead and pass the vehicle, so in this case I passed by and kept going with her side by side since it was a 6' bike lane.

The encounter made me think about how we educate the cyclists and it made me think we should have a document that could be handed out with new bike purchases.

Bike Signal 2.0

NE Broadway/Victoria will be the Bike Signal version 2.0.
Posted by Picasa

Streetcar Intersection

One the west side of the Broadway Bridge at NW Broadway/NW Lovejoy intersection, we have a challenging situation with a bike signal, streetcar that crosses in front of vehicles, and fairly heavy traffic. It's not as difficult as the intersection at the Rose Quarter, but we'll spend some time making this work well, serving all customers. More information to come.
Posted by Picasa

Saturday, November 13, 2010

City of Portland meets with USDOT RITA Adminstrator Peter Appel

Transportation Policy Director Catherine Ciarlo welcomed Peter Appel, the Administrator of the U.S. Department of Transportation Research and Innovative Technology Administration at the Portland Building on Friday for a briefing on the activities the City is taking to work closely with researchers at the Oregon Transportation Research and Education Consortium on advanced technology. The focus of the conversation was on recent bicycle innovations implemented by the City and transit signal priority applications that have made Portland a leader nationally in applying technology to move people more sustainably.

The City has been working closely with members of the Federal Highway Administration (FHWA) and the Federal Transit Administration (FTA) on the IntelliDrive Steering Committee. IntelliDriveSM is a vision of real-time, wireless communication among vehicles and infrastructure to promote safer and more efficient travel. There are several elements of the IntelliDrive program that will shape the way cities use transportation data in the future. As part of the City’s efforts, engineers are working in the AERIS program, a new multimodal USDOT initiative that seeks to promote more environmentally friendly travel choices through the use of real-time transportation system data.

The City of Portland plans to work with the Oregon Department of Transportation, Metro, Portland State University and its regional partners to further the efforts of IntelliDrive, applying for a future FHWA grant to implement the vision of a safer City.
Posted by Picasa

Sunday, October 24, 2010

WTS Speaking Engagement

WTS November Luncheon Featuring Peter Koonce, Portland Bureau of Transportation's New Signals and Street Lighting Manager
Tuesday November 9, 2010, 11:30 AM - Save the Date

Luncheon Presentation at The Governor Hotel

Today, most streets are designed and managed to meet mobility standards that focus on the movement of motor vehicles, failing to adequately accommodate and prioritize transit, walking, and biking. A new culture of innovation is needed in transportation as traditional solutions alone will not suffice. By 2035, the Portland Plan envisions transportation facilities that are designed and managed to prioritize travel investments that improve walking, biking, and universal accessibility as the first priority.

In support of this vision, Peter Koonce, Manager of the City's Signals, Street Lighting, & ITS Division will discuss how he's looking to make the City's traffic signals consistent with these goals resulting in more effective integration of land use, transit, cycling, and walking.

Please RSVP for this event by Registering Here

Friday, October 22, 2010

Madsen Bucket Bikes

Very cool contest from Madsen. I went to the Bike Gallery unveiling of these things and wanted one back then! MADSEN Cargo Bikes
Madsen Cycles Cargo Bikes

Thursday, October 21, 2010

WTS Speaker - November 9th

I was honored when I got the phone call to talk about the City's signals during the upcoming Women in Transportation Seminar speaker series. It will be a good time to reflect on the first year at the City and share my vision for how traffic signals should be part of the solution. So much of it is your approach to traffic and following the policies of the transportation plan. Ours is at:http://www.portlandonline.com/portlandplan/index.cfm?c=51314&a=297202

Wednesday, October 20, 2010

Baltimore City Response to Citizen Inquiry

I came across this letter from the City of Baltimore via Twitter. The City signals staff that I worked with (the transit agency was my client mostly), was pretty focused on moving cars. So, back then, I wouldn't have expected the mention of transit in a response about signal timing. It was a pleasant surprise, or is it greenwashing.

First on Fox...

Following the lead of KATU, Fox interviewed a cyclist for a sound bite.

"I haven't had as many close calls as I used to," said Jeff Ihle, a cyclist. "This was a really bad intersection before because the cars would cross ahead of the bikers and they wouldn’t look. So, this way, it’s just getting used to the new signal. I think it will be OK"



Tuesday, October 19, 2010

Are No Turn on Red Signs Confusing?

Yesterday, KATU Channel 2 lead off with this as their top story for 4 PM. I don't agree that it warrants front page cover and the news anchor seemed to spin the information a bit. I hope the thing that the citizens of Portland realize is that it is a construction zone. BikePortland.org mentioned it wasn't ready for prime time and that was somewhat true, but at the same time, how many signals are the day after construction while there is still construction active. We seem to be under the microscope a bit for this and I am okay with that, but the video here confirms that often times the public is quick to make an excuse when in reality you're on shaky ground. The cyclists that didn't see the indication... really? There are two locations where we show you the same indication. I am not sure you could miss it AND the two or three signs in advance of the intersection that describe "bike signal ahead".

http://www.youtube.com/watch?v=oesPzCDB4cc&feature=player_embedded

The key to this for drivers is paying attention to the No Turn on Red Sign. That shouldn't be that hard because there are two of them. One that is a static full time sign (the standard black lettering on white) and the other that is dynamic that comes up right before the bike signal is green and then turns off when the right turn is allowed.

When it says No Turn on Red, we're not just offering this as a hmm, maybe you shouldn't do this. It is a requirement.

Friday, October 15, 2010

Signal Timing Using Quarter Cycle Offsets in Downtown Portland

I was interviewed last week for this article by Peter Korn of the Portland Tribune. This blog post is inspried by my attempt to describe the signal timing in downtown without any technical terms to a member of the media. I was sure I struggled mightily and the first time I said quarter cycle offsets, I expected his eyes to roll, but we drew up a sketch discussed the math and related that to his experience. The sketch looked an awful lot like what I had previously written for the Signal Timing Manual back in 2008 while working for the FHWA. Here's the text:

A similar method of manual coordination timing can be applied to downtown grid networks. This method has been deployed in downtown Portland, Oregon by separating intersections into a quarter cycle offset pattern. The block spacing in downtown Portland is fairly uniform and relatively short (280 feet) and the grid is a one-way network. Each subsequent intersection is offset by a quarter of the cycle length, which is selected to progress traffic in both directions. The result is a progression speed that is dependent upon the cycle length. This approach establishes a relationship in both directions of the grid and permits progression between each intersection in each direction based on the speed that is a result of the selected cycle length and the block spacing. As shown in Figure 6-18 cross coordination throughout the grid is achieved using the quarter cycle offset method. This approach can be adjusted to account for turning movements within the grid and subtle  modifications to the distribution of green time.


In downtown Portland, the p.m. peak hour cycle length is 60 seconds, which results in a 15 second time difference between subsequent intersections. To travel the 280 feet in 15 seconds, one must travel (280'/15sec) or 18.67 feet per second or 13 miles per hour. The lower the cycle length, the faster the travel speed. Thus, Downtown Portland has progression in multiple directions at a slow speed which is especially good for buses that are accelerating from a stop, cars that can drive through at a consistent speed and come to a quick stop if someone in front of them pulls out of a driveway unexpectedly, and reasonable for people travelling on bicycles to use the lane and move along the signals without stopping every 280 feet. The short cycle length is also important in the condition that you have a high percentage of turning traffic that can result in queue spillback between the intersections. Short cycle lengths give an opportunity to keep traffic moving. There's a longer debate on short cycle lengths, but the important element of block spacing is a big part of that  debate.

NOTE: for some reason this figure is not available on the FHWA version of the Signal Timing Manual. I have confirmed that this link has a proper copy of the graphic.

Rose Quarter Bicycle Lanes + Box

TriMet fought bicycle lanes through the Rose Quarter because of the inherent conflicts of having people on bikes travelling through the busiest bus transfer centers in the City. I enjoy this picture because this was the confluence of the early peak period of cycling in Portland and our tour group heading back into town.
I wasn't sure how good an idea mixing buses and bikes at this location was. Having sat here for several years as a high school student transferring from MAX to the OLD line #5 TriMet Bus (Interstate before MAX)....

The transit center was enhanced with the extra eyes on the street and the break up of the concrete (with the center bike lanes that are in green).
Posted by Picasa

Bikes Belong Visit to Portland

The day before my big trip the City had a visit from Bikes Belong, an organization that brings engineers, policymakers, and planners together to visit great cycling communities. Their visits have included travel to European cities and mostly small groups and this was their first visit to Portland with people from Chicago, Houston, Seattle, and another City I can't recall right now. The visit was lead off by Mia Birk and Lake McTighe on Sunday. Catherine Ciarlo, Roger Geller, and I lead the presentation.... and Roger and I gave the tour. You always learn something when you are sharing. On this visit there was City Councilor from Houston who wanted to learn about the horse project which I had seen before, but hadn't been tracking very much in the past year. I know that when the kids are grown I am going to take all of the plastic animals and share them with the community throughout Southeast Portland in my bid to share and Keep People Weird.
Posted by Picasa

Tuesday, October 12, 2010

Grand opening for East Burnside-Couch Couplet

The City's signals group got a little more good press with the Grand opening for East Burnside-Couch Couplet.

Koin Reporter Carly Kennelly: "The City has actually timed all traffic signals along Couch to improve safety."

BTA's Gerik Kransky "Basically the signals are timed so traffic does not increase above 20 mph, and if the cyclist is in the lane sharing the road with automobiles, it is pretty comfortable and safe."

Music to my ears. BTA had a nice blog posting too, http://www.bta4bikes.org/btablog/2010/10/12/btas-executive-directors-comments-from-burnsidecouch-couplet-opening/ where they touted what we're doing with the signals. "One of the things that we are most pleased about is the timing of lights on Couch coming into the bridge.  Travel speeds are now at or below 20 mph providing safer speeds for shared traffic."

Broadway/Williams Bicycle Signal

KGW offered this short blurb about our newest bicycle signal that will be at N Broadway/Williams. This intersection has been a challenging one for navigation by people on bicycles.

Tuesday, October 5, 2010

Bicycle Transportation in Tokyo

Bicycles in Tokyo come in all shapes and sizes. You have your carbon fiber road bikes, track bikes, your rusted out old clunkers and the newer (some older) power assist bikes. The power assist were more prolific than I have seen anywhere and could be an Asian phenomenon considering the number of scooters that are used in these countries for basic transportation. The one pictured at right is a power assist bike that has what appears to be a refrigerator on the bike rack for deliveries of all sorts of food or whatever needs to be kept cold. It could just be a convenient box they had that would latch.
Overall, I was impressed with how many of these makeshift cargo bikes I saw and what was peculiar was how the racks don't seem any more stout than ours in the U.S.

I have much hope for cycling when I see women feeling comfortable on their bikes. The next population that is good to see are gentlemen in suits looking dapper doing business on a bike. This particular fellow doesn't look like a spring chicken, yet he's getting what he needs done and looking pretty good while doing it.
The riding on the sidewalk was a bit unnerving to me, but my fellow pedestrians didn't seem to care and I didn't see any conflicts just walking around the City.
Delineation of different modes happened some places, but it wasn't consistent. I am still worried about how motorists deal with cyclists at intersections.
The examples of these two pictures show a nice delineation on the bottom example and no such marking on the second. I'd be curious what their crash rates are compared to European practice. There is definitely a good amount of use in some of the older parts of town and a wide variety of facilities that are provided.
This location near the Imperial Palace was well delinated, but not heavily used. It may be a current best practice (it looks fairly new), but on my next trip it would be great to get together with the technical folks that are studying these facilities to learn more about the experience.
Posted by Picasa

Bicycle Transportation in Tokyo

Posted by Picasa

WE LOVE BIKES - DENMARK

This takes me back to my travels to Copenhagen this summer. I was in the CPH bike tour this summer and really enjoyed taking in the facilities there. I could go back in a second.

Tokyo Trains

In a haiku format in honor of the Japanese form of poetry:
Ever efficient
Always on time for my trip
Please export this, please

I couldn't resist. More to come. Part of the reason the train sevice is so effective is that they run so frequently that the drivers don't have room for much variability. The lowest frequency I saw in a subway was 6 minutes. It was 15 minutes in the very off-peak on the light rail in some of the rural parts that I saw on Monday of my trip.
It was very hard to tell if the signs (this one pictured isn't real-time persay) were based on schedule or the actual information from the train because there was hardly any difference.
During the peak hours, I didn't observe any of the train packers that push you in towards the doors. That's not to say that they aren't out there, it's just that I didn't get a chance to go check them out.
That's something a guidebook should have is to identify where the busiest train lines are and then direct you to watch. I am sure that in this day and age of Mixed Martial Arts that someone would be interested in the carnage that is train boarding (ha!). I am pictured packed in a train pretty tightly. It's definitely a fond memory that brought new levels of the term personal space into my consciousness. It didn't bother me really, but then again I am not a woman that has to endure travelling with men. But the Tokyo rail folks have thought of that and they have women only rail cars that serve those that have been groped one too many times in a crowded rail car. With two girls at home, I sympathize with them and applaud the transit agency's efforts to provide for a secont of the population you might otherwise not have riding the subway. This is somewhat akin to Portland's efforts to organize bike rides for women, which Susan has used as a springboard to enjoying cycling much more than she ever would have if she was pedaling along a bunch of smelly guys like me.
The train station transfer areas sometimes lacked a little in the way of capacity, but in all were very sufficient for moving people. One of the success factors for queuing (just like with traffic signals) is to keep the time people (vehicles in the U.S.) have the ability to congregate to a minimum. Thus, by having a short headway between trains you can keep people moving through the stations and reduce the surge of people that get on or off at anyone location. It also helps to eliminate the passengers who want to save themselves the 10 or 15 minutes between trains that stick their hand into the door to get on this particular train. That happens more than it should in many systems I have experienced and it results in the problems with variability, etc that plague transit.
Posted by Picasa

Saturday, October 2, 2010

Tour of Tokyo Traffic Management Center

I was very fortunate to visit the world's largest traffic managment center (based on number of traffic signals controlled at one location), which of course is located in Tokyo.
The Police agency is responsible for operations of the facility. I found a few key differences between Japanese operations and what we find in the U.S. First, because the transit agencies are private they don't allow them in the Traffic Management Center. The transit agencies essentially get the same information that the public does through the feedback gained from police.
The director of operations of the Tokyo TMC is here showing the ultrasonic detectors (12,000 of them in all) that provide the real-time performance for the entire system. The travel speed is updated every 50 seconds from the detection. The data is better than the loops that we use in Portland becuase the detectors provide better resolution of the data. Their 50-second data isn't quite as good as our 20-second resolution and I wonder if that's a function of their communications and another element that I wasn't able to learn about during this visit. It made me want to offer to host anyone in Portland and give them the full run down as an important educational function. There are quite a few things that are worth sharing and it's similar to the bicycling experience we have, only less revolutionary (pun optional).
The traffic management center screens are each 50" and were installed over 15 years ago. The system is 6 high and 12 wide and this is additional 6x6 screens on either side of the huge one. Amazing. They can place any camera where they want on the video board.

There is a 511 like system that takes the information and provides it for people on the phone that call in for information. They see an opportunity to change that over time and use the in car GPS. I was impressed when I was in taxis and how good their mapping systems were. The GPS in the cab had the lane configuration of each intersection and gave the driver information about how close they were. The Japanese are working on an IntelliDrive like system and it would be worth doing an assessment to determine if we should learn from them or vice versa.
Posted by Picasa

Tokyo Transportation Continued

I continue to pick up on things about the transportation system while experiencing it. Jamie Parks mentioned the bicycle and pedestrian joint sidewalk use and so I have paid some attention to that and this picture shows the design of what we would call a crossbike in the Portland Bicycle Master Plan. Tokyo applies this in most cases and has a lot of marked use of sidewalks for bikes. What is not clear to me in this example is whether the bicycle striping is for both directions. It seems that they they are and they aren't planning for that many cyclists or if you're overtaking, you might just use the crosswalk. The markings don't seem to result in compliance and people on bicycles travel in the roadway and on these cross bike type of facilities and the don't often stay within the lines.
The crossbike has applications including when there isn't an alternate facility and at the bicycle scramble where we may want people on bicycles to travel concurrently with a bicycle scramble (southbound at N Interstate/Oregon) without the vehicles that would conflict with people on bicycles accessing the Eastbank Esplanade path.
The innovation that I would like to bring back to Portland is the countdown timer in conjunction with the Walk timer. It isn't specifically a countdown but a relative message the describes that the Walk is expiring. This might be better than a countdown because the number is representative of time as opposed to the reduction of the "percentage". I find it unique that the top indication is where the time is counting down, perhaps it is just to reduce the confusion in the original message.
The second of these pedestrian signal indication pictures shows the count down of the indication. It appears that there are 10 LEDs in the head. I am curious if their signal heads are using the times from the previous cycles and what they do about changing the cycle lengths. There are a lot of unanswered questions related to signal control I have from this trip, but alas, there wasn't enough time to meet the folks that can talk about the details and they are probably like me, too busy to learn a language because they are sweating the small stuff like signal timing.
Where the pedestrian and cyclists are supposed to be on the sidewalk together, I am assuming that they are allowed to travel in both directions in their designated spaces, but I can't be sure from the observations I have made. I wouldn't say that there are more one direction or another.

Posted by Picasa
