Bicycle Signals Recommended for Inclusion in next MUTCD

Bicycle signals have been used in many cities in the United States. Yet, many members of the National Committee on Uniform Traffic Control Devices have not seen these in practice because their agency is responsible for higher speed facilities or are from communities where bicycle transportation has not required their use. The same is a problem for adoption of bicycle boxes, contraflow lanes, and nearly everything that is included in the NACTO Urban Bikeway Design Guide.

Today, the National Committee voted to approve bicycle signals in the next edition of the Manual. This approval will amend the FHWA Interim Approval to permit a wider range of applications. The vote was unanimous and had limited discussion.

A bicycle standard mounted at typical heights at a signalized intersection.

A 4" nearside bicycle signal mounted
at eye level for a person on a bicycle.

Flexibility in Designing Bicycle Infrastructure

Buffered Bike Lane Exampl
Photo from San Francisco

The approach to street engineering design should be different depending on the context. One challenges of  uniformity is that it attempts to treat every street the same. As I have mentioned before, the speed of the street roughly determines whether the street is urban or rural in the MUTCD. Yet, these two examples for streets represent unique situations that present a unique situation not currently covered in the MUTCD. The double white lines shown at right means to the highway engineers that a person on a bicycle is not allowed to leave the facility and the vehicles are not allowed to cross. The use of the double white is currrently described for freeway applications, not currently used on urban streets.



The second example of a "new" type of facility for the MUTCD to consider is G Street NE from Washington, DC (provided by Bill Schultheiss of Toole Design Group). The challenge with this type of facility is that it presents a different interpretation of the use of double yellow lines than what's commonly used. The double yellow lines are intended to separate the directions of traffic and insure that the previously one way traffic is not in the path of the cyclist. The challenge with this sort of situation is the on-street parking on the right hand side of the picture. This raises concerns where high speeds on the facility exist. This sort of a facility is a low speed condition where the needs are quite different than in a rural condition. This is continued dialogue that needs broader consideration.

The good news is that the FHWA is leading the charge to encourage flexibility in the design of pedestrian and bicycle facilities, citing both the NACTO Urban Bikeway Design Guide, the ITE Designing Walkable Urban Thoroughfares: A Context Sensitive Approach as examples of documents that provide useful treatments that can be applied to further walking and cycling in our communities.

Advisory Bike Lanes and the Request to Experiment in Minneapolis - APBP Sharing Information Successfully

Introducing new types of facilities to transportation infrastructure can be perceived as a daunting engineering challenge because of fears of liability associated with something that isn't uniform or standard. The MUTCD is often the first document that engineers go to when identifying what's possible. Adopting facilities from Europe or other parts of the world that aren't described in our typical references make a project difficult to imagine because there isn't experience with those types of facilities.

The Manual of Uniform Traffic Control Devices requires the use of a center line in the following cases:

Standard:
09 Center line markings shall be placed on all paved urban arterials and collectors that have a traveled way of 20 feet or more in width and an ADT of 6,000 vehicles per day or greater. Center line markings shall also be placed on all paved two-way streets or highways that have three or more lanes for moving motor vehicle traffic.

Guidance:
10 Center line markings should be placed on paved urban arterials and collectors that have a traveled way of 20 feet or more in width and an ADT of 4,000 vehicles per day or greater. Center line markings should also be placed on all rural arterials and collectors that have a traveled way of 18 feet or more in width and an ADT of 3,000 vehicles per day or greater. Center line markings should also be placed on other traveled ways where an engineering study indicates such a need.

11 Engineering judgment should be used in determining whether to place center line markings on traveled ways that are less than 16 feet wide because of the potential for traffic encroaching on the pavement edges, traffic being affected by parked vehicles, and traffic encroaching into the opposing traffic lane.



As a practitioner that traveled to The Netherlands several years ago, one of the treatments commonly used on Dutch streets is advisory bike lanes. The step that's necessary beyond "violating" the normal use of a centerline is to make the bike lanes striped (dashes as shown below) and in this case, the space for cars in between the dashed lines may be less than what's normally used for striped lanes in both directions. Thus, the width of that interior space is less than 20 feet and was measured to be as narrow as 16 feet with 5 foot bike lanes on both sides in the example here.

East 14th Street in Minneapolis has Advisory Bicycle Lanes

Minneapolis has implemented advisory bike lanes on East 14th Street. Riding on this street, I found it worked well (it was off-peak travel times) because of the low traffic volumes and low speeds. In our six block ride along the street, we never encountered cars passing each other at the same time, so when a motor vehicle did need to pass me, the person passed with a very comfortable amount of space (likely due to the elimination of the center line).

Advisory bike lanes or bike lanes without a centerline on a street (as shown at right) have been used sparingly in Portland. There has been some elimination of centerlines where the traffic volumes do not warrant the maintenance necessary to keep them marked. The volumes and the speeds are of interest. There's some interest in measuring before and after speeds, to determine whether the street is more comfortable for people on bikes.

Street level view of NE 43rd Advisory Bicycle Lane in Portland, OR

There is also a really nice summary of the topic and pictures on the Peter Furth inspired blog Sustainable Transportation Holland by Tom Bertulis, etal and an update in 2012 that included some dimensions from the CROW Manual. The 2012 report even got a copy of the Request to Experiment submitted to FHWA. The Request to Experiment was a summary of a number of innovative treatments that the City undertook as a part of their

Dutch Minimum Width using adjusted CROW values	Dutch Width According to CROW manual	US Minimum Width
Bike-Car-Bike	5.15 m; 16' 11''	6.45 m; 21' 2''
Car-Car-Bike	5.8 m; 19'	6.15 m; 20' 2''
Bike-Car-Car-Bike	7.5 m; 24' 7''	7.3 m; 23' 11''
Bike-Bus-Bus-Bike*	8.54 m; 28''	9 m; 29' 6''

The takeaway from this experience is that APBP is a great convener of ideas that should guide those involved with information on new facilities. This information can be used to move bicycle and pedestrian infrastructure forward.  Interestingly enough during my research on the topic, APBP had a summary article based on some listerv discussion on Advisory Bike Lanes back in 2009.

It would be ideal to get information from the members of the listserv related to what are the most critical issues that should be in the next edition of the Manual of Uniform Traffic Control Devices. One of the challenges of APBP is to make sure that we are working with engineers that have access to available resources like this City of Minneapolis Request to Experiment (linked above). Yet, if only Minneapolis is implementing this sort of treatment, the treatment can be viewed as a singular interest that doesn't get widely adopted or considered for the MUTCD.

Old Infrastructure in Minneapolis tells our story - Save the Highway Trust Fund?

A visit to the neighborhoods of Minneapolis provided an opportunity to review some of the infrastructure that is common in big cities. There has been a lot of chatter about the Highway Trust Fund running out of money and the need for a reinvestment in our infrastructure. I agree with that knowing what I know about how our signals are falling apart because they are over 50 years old. Here's a few examples where infrastructure reinvestment in Minneapolis would reduce the likelihood of failure.

Normally with a mast arm traffic signal pole,
there aren't wires aerially throughout the intersection.
It's likely the underground conduit has failed and
the overhead wiring is a substitute.

This sort of wiring is not standard. I am hopeful that there aren't more examples like this.

A combination traffic cabinet and signal pole.
Portland has none of these, so this must date back 50+ years.

This may be the longest linear pothole/crack that adds separation between the bike lane and the motor vehicle travel lane

Improving the MUTCD by Proposing Language Modifications - Bicycle Detector Symbol Marking

The MUTCD is a document that is produced by the Federal Highway Administration. The National Committee on Uniform Traffic Control Devices simply offers proposed language that the FHWA considered prior to producing the final language in the document.

I volunteered to write my first Section, which was a fairly simple undertaking because the existing language in the MUTCD is two sentences. My proposed additions to provide green is shown below in green.

Section 9C.05 Bicycle Detector Symbol
Option:
01 A symbol (see Figure 9C-7) may be placed on the pavement indicating the optimum position for a bicyclist to actuate the signal.
02 An R10-22 sign (see Section 9B.13 and Figure 9B-2) may be installed to supplement the pavement marking.

Guidance:

A sample of what is proposed by the language.

03 Green may be used in combination with the bicycle detector symbol where a light colored pavement does not provide sufficient contrast with the markings.

UPDATE & proposed Edit to 3A.05 of MUTCD

05 When used, green pavement markings shall be used to delineate bicycle facilities:

A.     Increase the awareness of conflict areas at intersections and in separated bicycle facilities

B.      Provide contrast to shared lane markings, or

C.      Provide contrast to improve understanding and used in combination with the bicycle detector symbol where a light colored pavement does not provide sufficient contrast with the markings.

The study that Portland State University completed on this treatment is linked here.

Spacing of Bicycle Shared Lane Markings - NACTO and MUTCD

One of the many debates at the National Committee of Uniform Traffic Control Devices Bicycle Technical Committee was focused on the spacing of bicycle shared lane markings.

The NACTO Urban Bikeway Design Guide offers guidance in the form of a picture on the placement of sharrows. The debate surrounds the minimum distance between the sharrows and one interest is to make sure that the sharrows aren't confused as a bike lane.

Are sharrows spaced at 25 feet likely to be confused as a bike lane?
Source: Urban Bikeway Design Guide, NACTO

The NACTO guide provides a recommendation that includes the following text: Frequent, visible placement of markings is essential. The number of markings along a street should correspond to the difficulty bicyclists experience taking the proper travel path or position. SLMs used to bridge discontinuous bicycle facilities or along busier streets should be placed more frequently (50 to 100 feet) than along low traffic bicycle routes (up to 250 feet or more). SLMs used along low volume routes can be staggered by direction to provide markings closer together.

The MUTCD has not had much guidance on the spacing of shared lane markings. Section 9C.07 of the Manual does not provide any minimum spacing between sharrows. The Manual does provide guidance on the idea that they should not be used at a distance of greater than 250 feet. Of course, the Bicycle May Use Full Lane sign could be used as described by Section 9C and it shows the impact that guidance like the NACTO Urban Bikeway Design Guide has on the MUTCD.



The language suggested included the following:

Shared lane marking in Chicago in advance of the traffic signal.
MUTCD is determining the spacing between these symbols.

 If used, the shared lane marking shall have a minimum longitudinal spacing in accordance with Table 9X-AA.

Posted Speed Limit (mph)         20                   25                   30                   35
Spacing (feet)                             50                   50                   75                  100

The maximum spacing proposed in the next edition is 250 feet and is only a guidance statement.

Another interesting topic was the use of sharrows when a bike lane drops like this example from New York City.

Shared lane markings showing the shared use of the curb lane in advance of a traffic signal.

These are the sort of details that are discussed at the National Committee.The details matter.

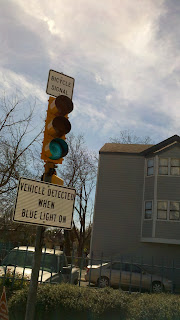

Bicycle Signals in the MUTCD

Bicycle signals received FHWA Interim Approval in December 2013. The Interim Approval offered by the FHWA was very difficult implementing language. There were specific challenges to the language provided and I had the following critiques of that document:

Bicycle signals were introduced in
Chicago to improve conditions.

Issues with the Conditions of Interim Approval – Points that are Problematic

1. Item 1. General Conditions section requires the bicycle signal face be “not in conflict with any simultaneous motor vehicle movement at the signalized intersection, including right (or left) turns on red”. This shall statement requires a No Turn On Red without consideration of the intensity or volume of the conflict. In general, this will reduce their acceptance.
2. Item 2 Meaning of Bicycle Signal Indications identifies flashing Green as an option, that’s not used in any other location in the MUTCD.
3. Item 3c describes what a GREEN BICYCLE means, but there was some differences in interpretation whether this suggested that it was “Protected Only”. This section also repeats the No Turn on Red restrictions.
4. Item 4c.vi. Requires the signal heads to be separated by at least 3 feet. This would invalidate many of the installations in NYC, Chicago, and Long Beach.
5. Items 5.c.i. and 5.c.ii. suggests that arrows be used as a part of the bicycle signal to accomplish “turn prohibitions”.
6. Item 7. Regulator Signing requires a Bicycle SIGNAL sign “shall be installed immediately adjacent to every bicycle signal face that is intended to control only bicyclists”.  This is problematic with a 4” nearside signal which is allowed.
7. Item 8a. Pedestrian Hybrid Beacons: restricts the use of a bicycle signal face.
8. Item 8c. Exclusive Bicycle Phases that permit “Scramble” Phases is written in such a way that suggests that a diagonal crossing of two approaches (multi-purpose trail as an example) shall not be used.

Chicago used existing poles to implement
a two way cycletrack on Dearborn.

In the discussions with FHWA staff it seemed that a clarification related to 1, 2, 3, and 5 would be extremely helpful. Item 4 seems overly restrictive given the ability to limit visibility and the success of the communities mentioned with their applications of adjacent signal heads. Item 6 could be clarified for the signals that are adjacent to the vehicle indications. The language in the next edition of the MUTCD was discussed as having the “shall not” be changed to should (with pedestrian hybrid beacons). Item 8 was simply restricting the display of green from all approaches at an intersection for bicycle movements.

Part of my role as a APBP voting member is to provide guidance to the National Committee on the topic. In Portland, we have several bicycle signals and we're sorting through the various issues and editing the MUTCD to include the language that allows for bicycle signals.

There is strong support from the FHWA, starting from the Administrator, to make this happen. Bicycle signals are certainly a device in the toolbox that can be used to effectively improve safety of the transportation network.
